LIS® Tooth Adapter 3G6304SX (Double Strap) | For CAT® J300 Tooth System

The LIS® Tooth Adapter 3G6304SX (Double Strap) is a high-quality LIS® replacement part for the CAT® J300 Tooth System on construction machinery. This weld-on adapter reliably secures all CAT® J300 tooth caps and effectively protects the bucket cutting edge. Suitable for blades up to 30 mm. Manufactured from highly wear-resistant cast steel according to LIS® Germany Standards, this tooth holder offers precise fit and supreme stability for durable operation. Benefit from the LIS® Lifetime Breakage Guarantee*.

Technical Details

• Type: Tooth Adapter Double Strap (Double Strap), Tooth Adapter, Tooth Holder Weld-on Adapter, Excavator Tooth Adapter, GET

• Material: Highly Wear- Resistant Cast Steel (according to LIS® Germany Quality Standards)

• Original Reference Numbers: 3G6304, 9J8929

• Compatible Tooth Caps: All types of the CAT® J300 System

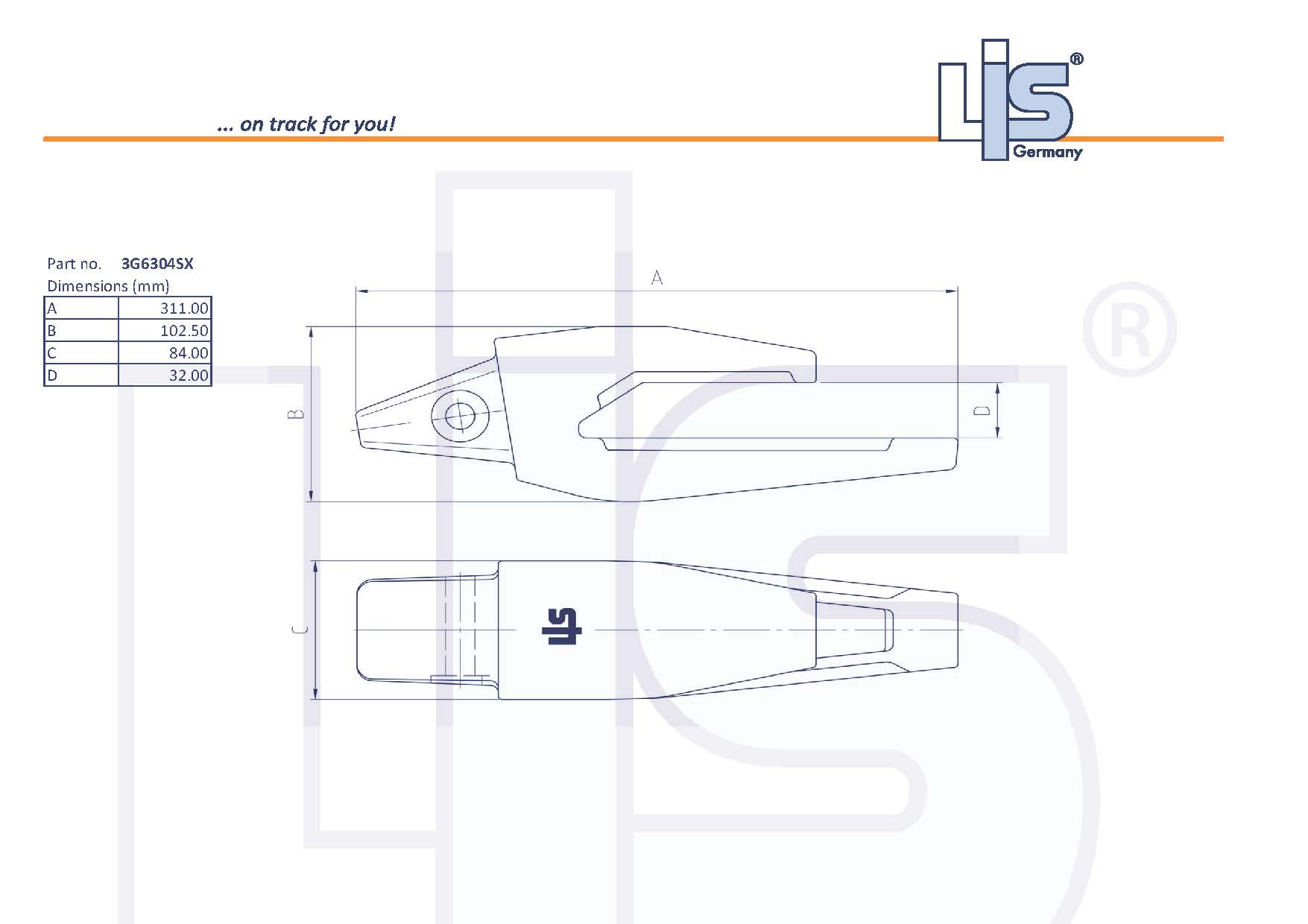

• Dimensions (approx.):

  • Length (A): 311 mm

  • Height (B): 102.50 mm

  • Width (C): 84 mm

  • Blade Lip Opening (D): 32 mm

  • Recommended for Blades up to: 30 mm

Order now!

Secure this LIS® Tooth Adapter for reliable tooth cap fastening and durable bucket protection. Also available via Express Shipping.
