LIS® Tooth Adapter 6Y3224SX for CAT® J225 | Weld-on Adapter
Product information
The LIS® Tooth Adapter 6Y3224SX is a high-quality weld-on adapter for the CAT® J225 Tooth System on construction machinery. It securely fastens all CAT® J225 tooth caps and is suitable for cutting edges up to 23 mm. Manufactured from highly wear-resistant cast steel according to LIS® Germany Standards, this tooth holder ensures precise fit and supreme stability. Benefit from the LIS® Lifetime Breakage Guarantee*.
Technical Details
Type: Tooth Adapter, Tooth Holder Weld-on Adapter, Excavator Tooth Adapter, GET
Material: Highly Wear-Resistant Cast Steel (according to LIS® Germany Quality Standards)
Original Reference Number: 6Y3224
Compatible Tooth Caps: All types of the CAT® J225 System

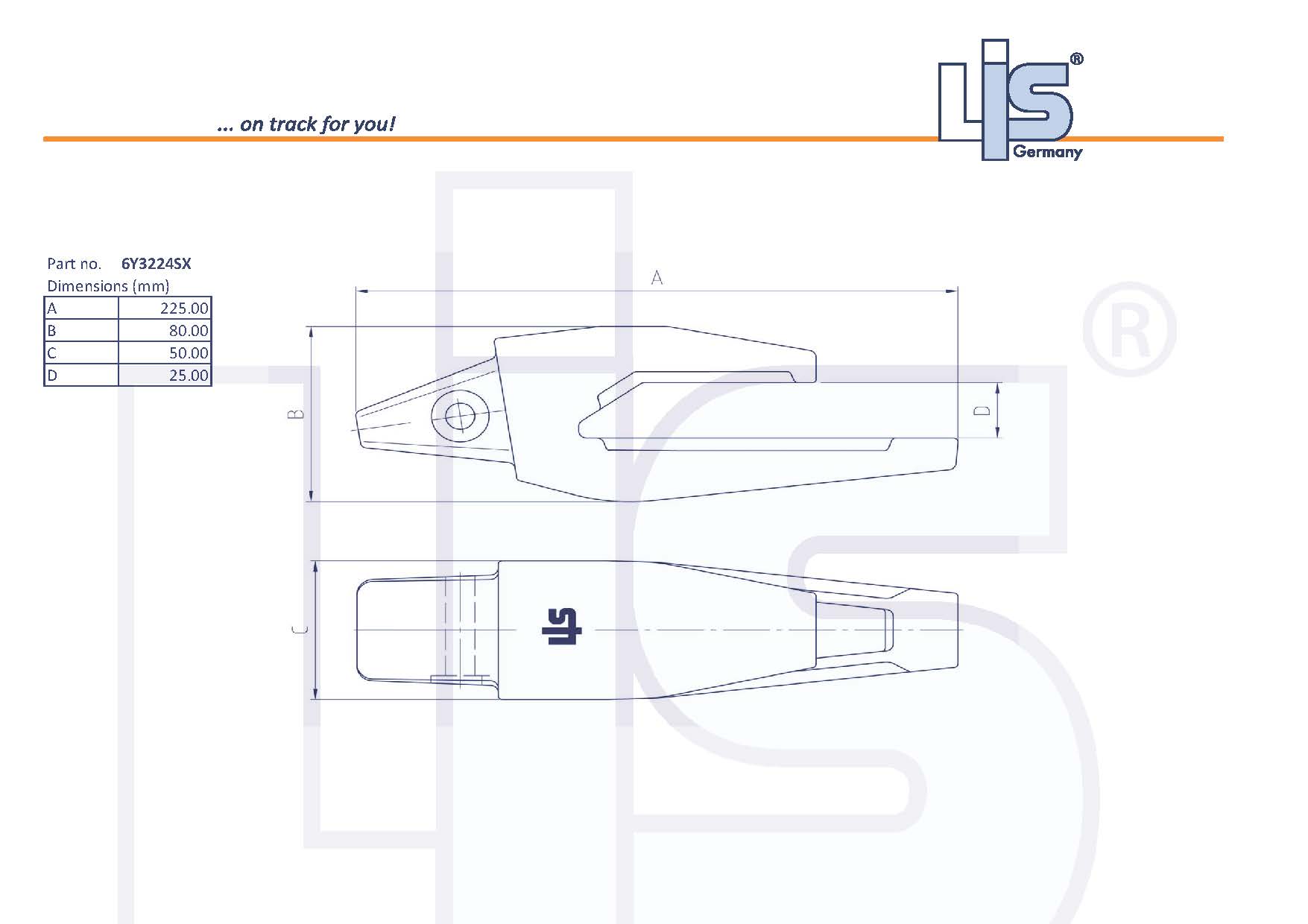

Dimensions (approx.):
Length (A): 225 mm
Height (B): 80 mm
Width (C): 50 mm
Blade Lip Opening (D): 25 mm
Recommended for Blades up to: 23 mm
Order now!
Secure this LIS® Tooth Adapter for reliable tooth cap fastening and supreme stability. Also available via Express Shipping.
| Tooth Size: | J225 |
|---|---|
| Shipping Weight: | 2.6 kg |
