ESCO® Ultralok® U35 Adapter – 4824R-U35 (Typ 5 | 1-1/2 Top Leg)
Product number:
4824R-U35
€406.95
incl. VAT €484.27
Product information
The ESCO® Ultralok® Adapter 4824R-U35 is a wear part for the Ultralok® tooth system in size U35. The 1-1/2 Top Leg configuration, Type 5, is designed for mounting at the cutting edge and forms the system pocket and tooth pocket for compatible Ultralok® tooth points.
As part of the Ground Engaging Tools (GET), the adapter transfers digging forces from the tooth into the bucket structure.

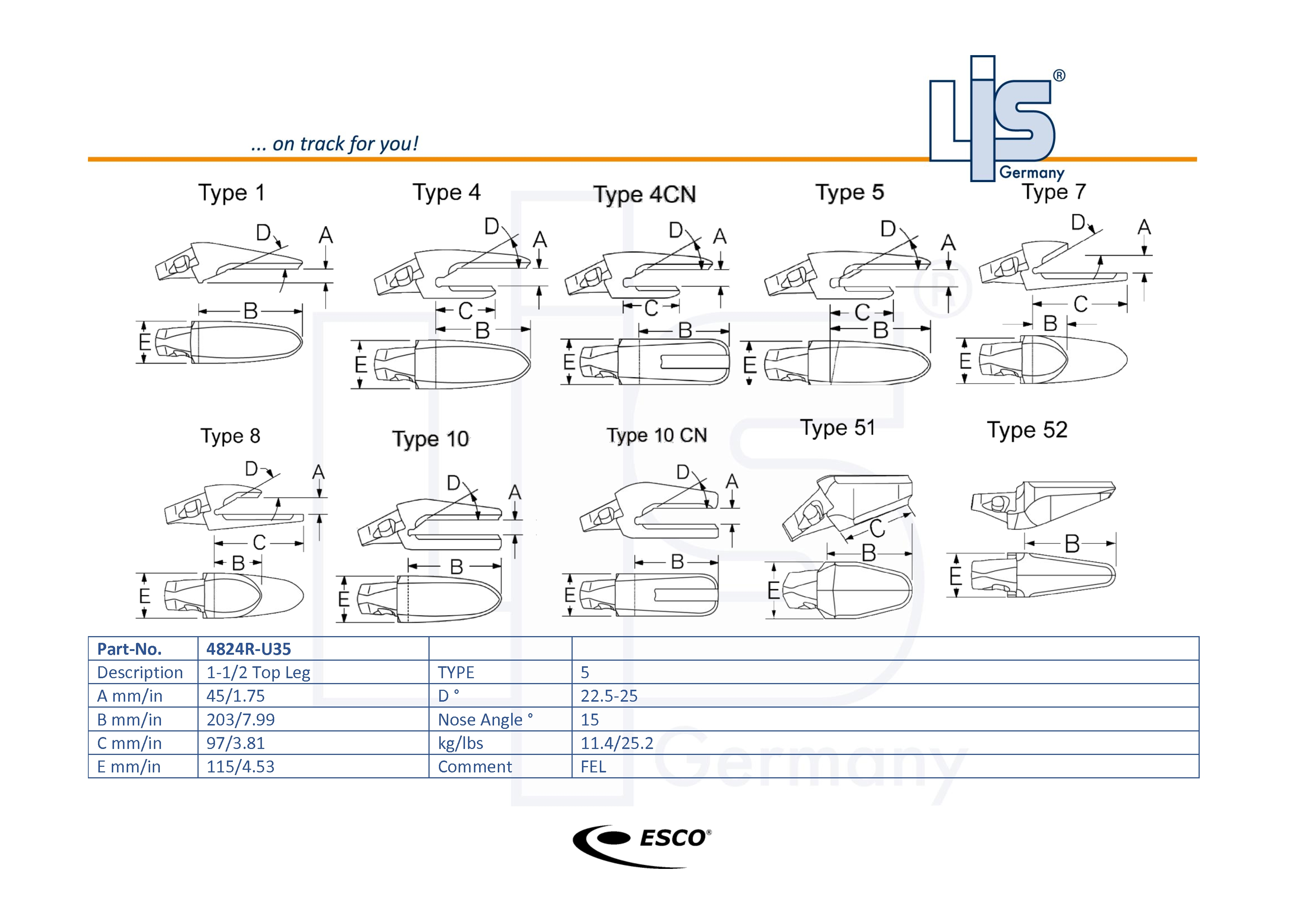

Technical Data:
System: ESCO® Ultralok®
System Size: U35
Part Number: 4824R-U35
Design: Top Leg Adapter
Type: 5 – 1-1/2 Top Leg
Dimension A – Opening width (cutting edge thickness): 45 mm
Dimension B – Upper leg length: 203 mm
Dimension C – Lower leg length: 97 mm
Dimension D – Bevel angle: 22.5–25°
Nose Angle: 15°
Weight: 11.4 kg
| Tooth Size: | U35 |
|---|---|
| Shipping Weight: | 12.02 kg |
