LIS® Tooth Adapter (Flush Mount) 8E0464SX | For CAT® J460 Tooth System

The LIS® Tooth Adapter 8E0464SX (Flush Mount) is a high-quality LIS® replacement part for your CAT® J460 Tooth System on construction machinery. This weld-on adapter allows for the flush mounting of tooth caps to the bucket. As a larger tooth holder, it offers superior wear protection and increased durability compared to traditional systems. Manufactured from highly wear-resistant cast steel according to LIS® Germany Standards, this tooth holder ensures precise fit and supreme stability for various excavation tasks. Benefit from the LIS® Lifetime Breakage Guarantee*.

Technical Details

• Type: Tooth Adapter Flush Mount, Tooth Holder, Weld-on Adapter, GET

• Features:

  • Suitable for blades with 45-51 mm thickness and a 22.5° bevel angle

• Material: Highly Wear-Resistant Cast Steel (according to LIS® Germany Quality Standards)

• Original Reference Number: 8E0464

• Compatible Tooth Caps: All types of the CAT® J460 System

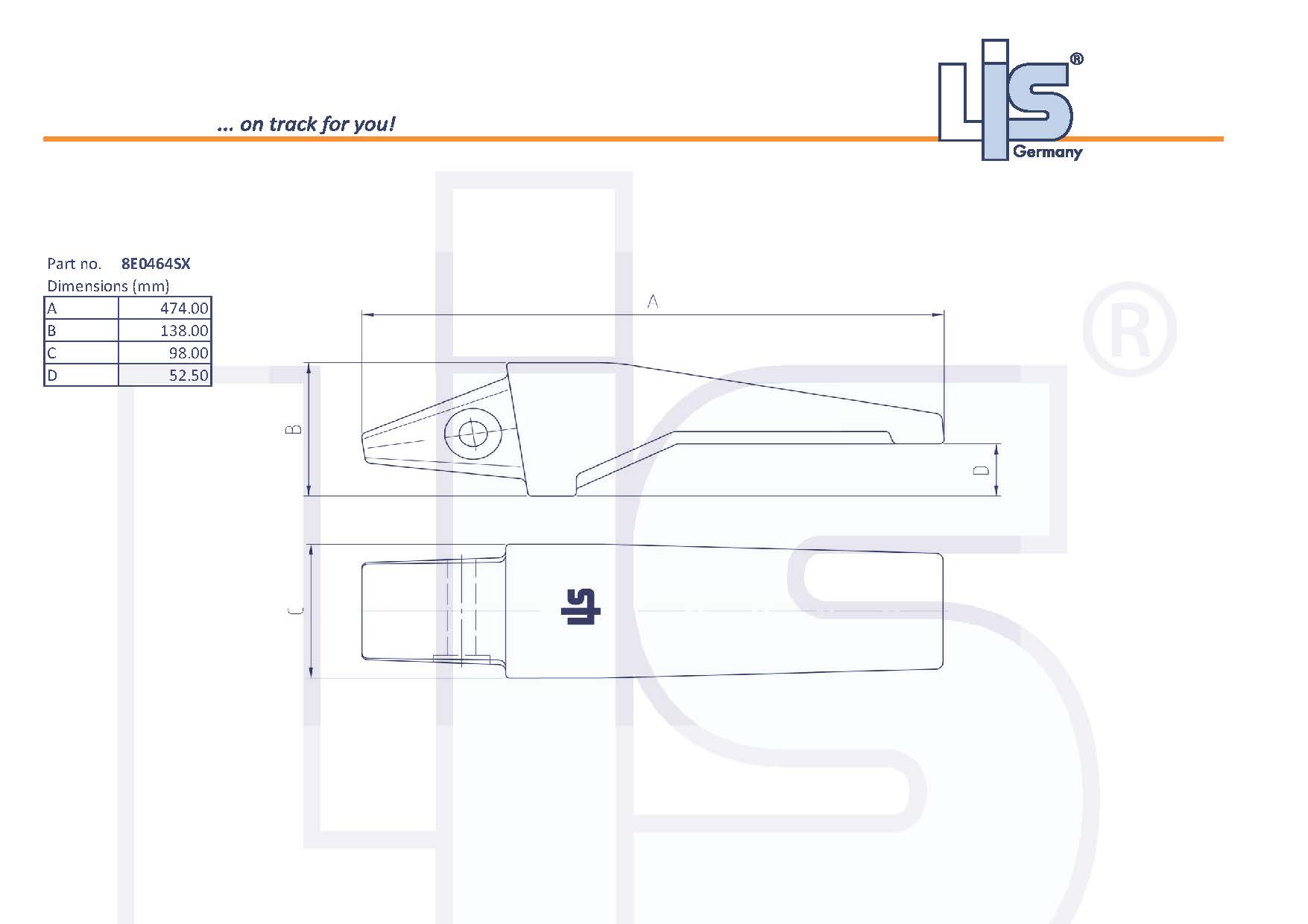

• Dimensions (approx.):

  • Length (A): 474 mm

  • Height (B): 138 mm

  • Width (C): 98 mm

• Application: Wheel loader buckets

Order now!

Secure this LIS® Tooth Adapter for flush mounting and increased durability. Also available via Express Shipping.
