LIS® coupling hook (weld-on hook) 313x40x40mm for VOLVO® and JCB®
Product information
This LIS® coupling hook pair (1 pair = 2 pieces) is a weld-on part for Volvo® L30, L32, L35 and JCB® 409 yard/wheel loaders. The hooks are designed for converting attachments.
Manufactured from 30 mm thick S355 steel, this weld-on part from LIS® Germany ensures maximum load capacity and a precise fit.
Features and Benefits of the LIS® Coupling Hook Pair
High Material Thickness: Manufactured with 30 mm S355 steel (higher than standard) for excellent load capacity and durability.
Precision: Laser-cut edges ensure exact seating of the coupling pins and minimize play.
Ready to Weld: The untreated surface is ideal for immediate and professional Welding.
Technical data and compatibility

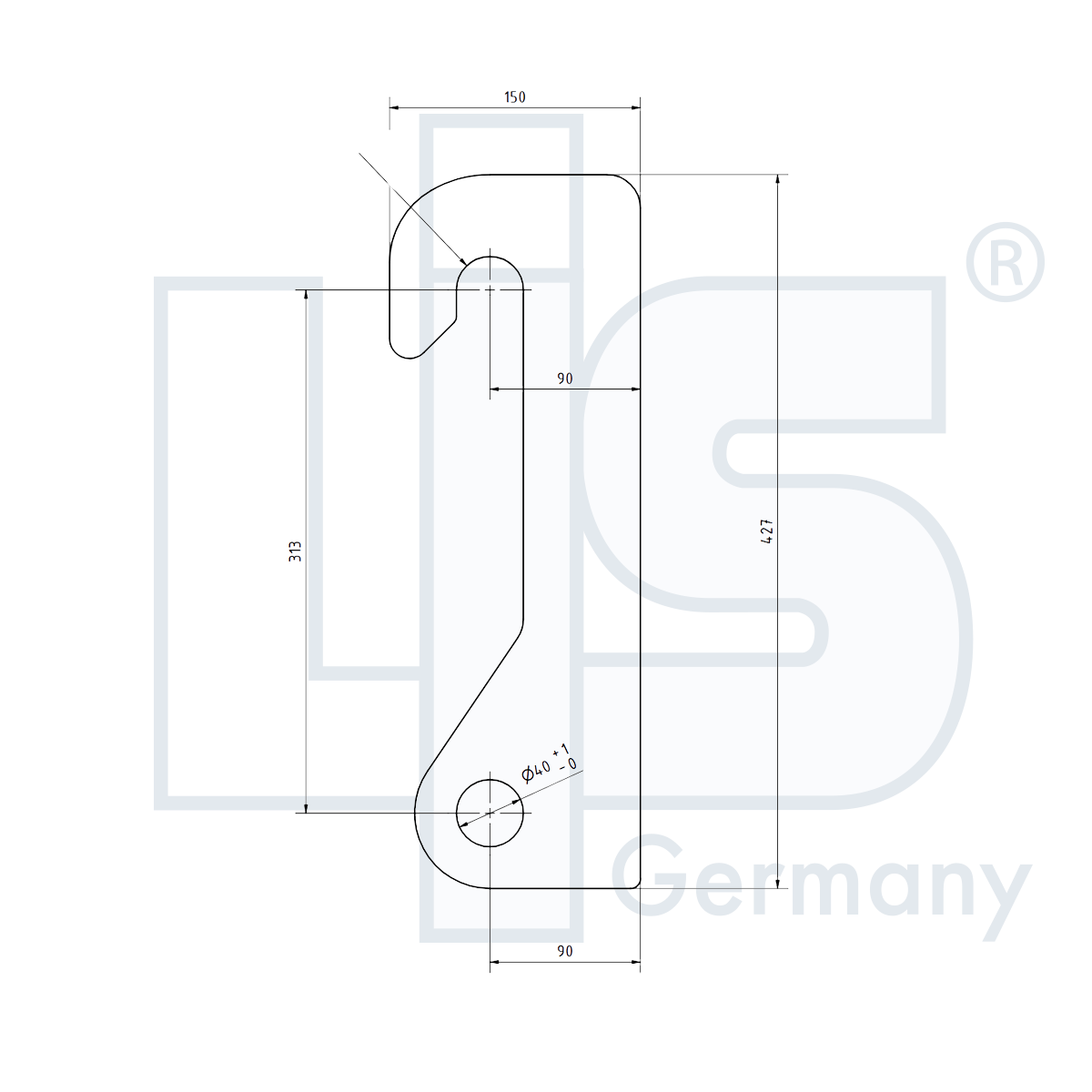

Technical specifications:
- Hole spacing (center/center): 313 mm
- Hole diameter: 40 mm (+ 1 mm tolerance)
- Hook diameter: 40 mm (+ 1 mm tolerance)
- Material: S355 steel
- Material thickness of side walls: 30 mm
- Type (synonyms): Coupling hook / Weld-on hook / Weld-on bracket / Weld-on brackets
- Surface: Untreated (no paint)
- Scope of delivery: 1 pair (2 pieces)
Suitable for e.g.:
- Volvo®: L30, L32, L35 Wheel Loader
- JCB®: 409 Yard Loader
Order now! Also available with express shipping.
Note: This is a high-quality LIS® spare part and not an original part from the respective machine manufacturer.
| Shipping Weight: | 22 kg |
|---|
